SYD Series 113 High and Low Temperature Servo Motor

The SENYD SYD Series High and Low Temperature Servo Motor is a high-performance, customizable servo motor designed for use in harsh high and low temperature environments. Its internal permanent magnets are made of high-performance neodymium iron boron (NdFeB) material. The combination of advanced magnetic materials and a specially designed rotor–stator assembly is the key to achieving high torque and high power density.

It is widely used in humid, desert, hot, cold, icy, freezing, or any extreme environmental conditions.

Operating temperature range: -40°C to 80°C
Rated power: 100W–17kW
Rated speed: 3000 rpm
Built-in feedback: resolver or absolute encoder
Customization options: various winding designs available, supporting voltage levels from 28VDC to 380VAC.

SYD 113 Series High and Low Temperature Servo Motor

Model	Rated Voltage UN (V)	Rated Power PN (kW)	Rated Speed Nn (r/min)	Rated Torque MN (N·m)	Rated Current IN (A)	Inertia J (10⁻⁴ kg·m²)	Inertia Jp (10⁻⁴ kg·m²)	Weight M (kg)	Weight Mp (kg)	Number of Poles
SYD113-0151L30	220VAC	1.51	3000	4.8	7.1	2.05	2.50	5.5	7.5	8
SYD113-0214L30	220VAC	2.14	3000	6.8	10.0	2.48	2.93	6.2	6.6	8
SYD113-0264L30	220VAC	2.64	3000	8.4	10.8	3.55	4.0	7.7	9.7	8
SYD113-0314L30	220VAC	3.14	3000	10.0	15.1	4.61	5.06	9.2	11.2	8
SYD113-0418L30	220VAC	4.18	3000	13.3	17.8	6.75	7.20	12.4	14.4	8
SYD113-0151H30	380VAC	1.51	3000	4.8	3.4	2.05	2.50	5.5	7.5	8
SYD113-0188H30	380VAC	1.88	3000	6.0	4.3	2.48	2.93	6.2	6.6	8
SYD113-0180H20	380VAC	1.80	2000	8.6	4.3	3.55	4.00	7.7	9.7	8
SYD113-0209H25	380VAC	2.09	2500	8.0	5.3	3.55	4.00	7.7	9.7	8
SYD113-0264H30	380VAC	2.64	3000	8.4	6.4	3.55	4.00	7.7	9.7	8
SYD113-0218H20	380VAC	2.18	2000	10.4	5.2	4.61	5.06	9.2	11.2	8
SYD113-0262H25	380VAC	2.62	2500	10.0	6.2	4.61	5.06	9.2	11.2	8
SYD113-0302H30	380VAC	3.02	3000	9.6	6.5	4.61	5.06	9.2	11.2	8
SYD113-0231H15	380VAC	2.31	1500	14.7	4.9	6.75	7.20	12.4	14.4	8
SYD113-0293H20	380VAC	2.93	2000	14.0	7.2	6.75	7.20	12.4	14.4	8
SYD113-0430H30	380VAC	4.30	3000	13.7	8.9	6.75	7.20	12.4	14.4	8

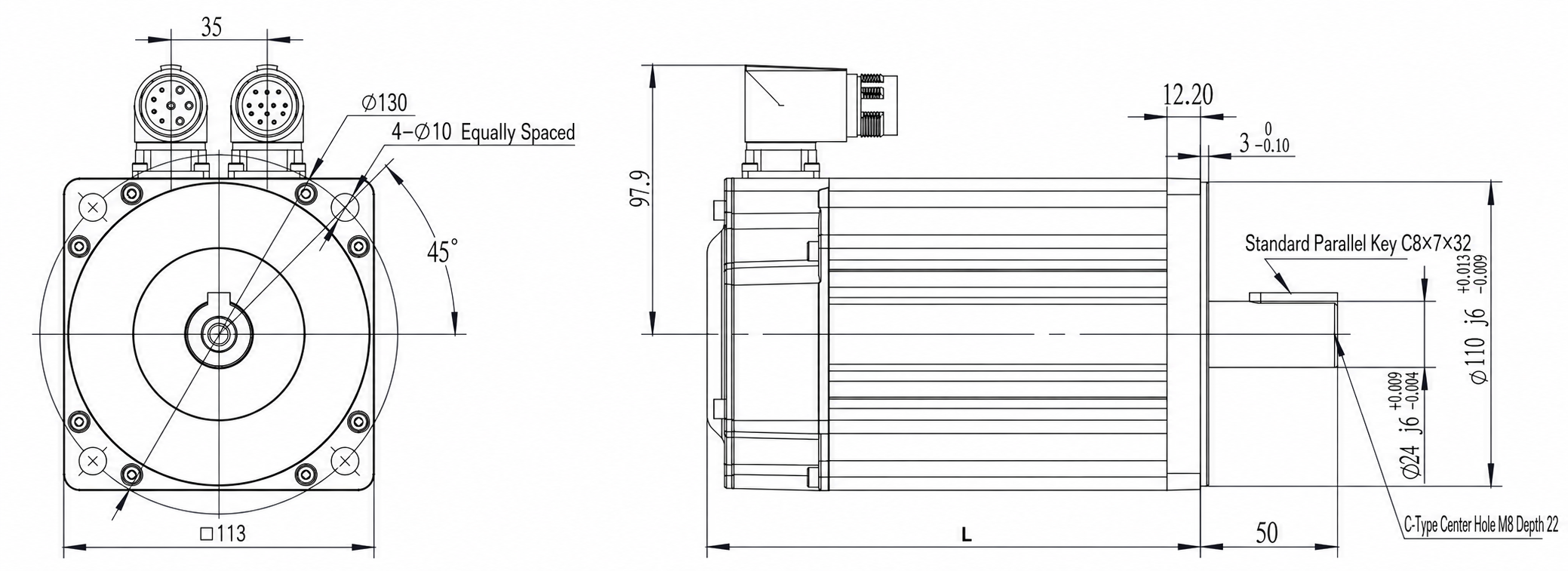

SYD High & Low Temperature Servo Motor 113 Series Dimension Drawing

Model	Motor Length L (Without Brake)	Motor Length L (With Brake)
SYD113-0151L30	145	198
SYD113-0214L30	155	208
SYD113-0264L30	180	233
SYD113-0314L30	205	258
SYD113-0418L30	255	308
SYD113-0151H30	145	198
SYD113-0188H30	155	208
SYD113-0180H20	180	233
SYD113-0209H25	180	233
SYD113-0264H30	180	233
SYD113-0218H20	205	258
SYD113-0262H25	205	258
SYD113-0302H30	205	258
SYD113-0231H15	255	308
SYD113-0293H20	255	308
SYD113-0430H30	255	308
