SYD Series 185 High and Low Temperature Servo Motor

SENYD SYD series high and low temperature servo motor is a high-performance, customizable servo motor designed for operation in extreme high and low temperature environments. The internal permanent magnets are made of high-performance NdFeB (neodymium iron boron) material. The magnet material and the special rotor–stator assembly design are key to achieving high torque and high power density. It is widely used in humid, desert, hot, cold, icing, freezing, or any other extreme temperature environments.

Operating temperature: -40°C to 80°C
Rated power: 100W–17kW
Rated speed: 3000 rpm
Built-in resolver or absolute encoder
Customizable windings available, supporting multiple voltage levels from 28VDC to 380VAC.

SYD 185 Series High and Low Temperature Servo Motor

Model	Rated Voltage UN (V)	Rated Power PN (kW)	Rated Speed Nn (r/min)	Rated Torque MN (N·m)	Rated Current IN (A)	Inertia J (10⁻⁴ kg·m²)	Inertia Jp (10⁻⁴ kg·m²)	Weight M (kg)	Weight Mp (kg)	Number of Poles
SYD185-0390H30	380VAC	3.9	3000	12.5	8.3	19.2	25.5	24.2	31.2	8
SYD185-0470H15	380VAC	4.7	1500	30.0	9.9	35.5	41.8	29.6	36.6	8
SYD185-0600H20	380VAC	6.0	2000	28.5	11.8	35.5	41.8	29.6	36.6	8
SYD185-0750H30	380VAC	7.5	3000	23.8	15.7	35.5	41.8	29.6	36.6	8
SYD185-0670H15	380VAC	6.7	1500	42.5	14.5	51.8	58.1	35.0	42.0	8
SYD185-0750H20	380VAC	7.5	2000	36.0	15.9	51.8	58.1	35.0	42.0	8
SYD185-0930H30	380VAC	9.3	3000	29.5	20.4	51.8	58.1	35.0	42.0	8
SYD185-0880H15	380VAC	8.8	1500	56.3	18.6	68.1	74.4	40.4	55.0	8
SYD185-1000H20	380VAC	10.0	2000	47.9	22.3	68.1	74.4	40.4	55.0	8
SYD185-1070H30	380VAC	10.7	3000	34.0	22.5	68.1	74.4	40.4	55.0	8
SYD185-0350S30	48VDC	3.50	3000	11.1	85.0	19.2	25.5	24.2	31.2	8
SYD185-0500S30	48VDC	5.00	3000	16.0	119.0	27.3	43.9	27	34	8
SYD185-0350Q30	72VDC	3.50	3000	11.1	55.7	19.2	25.5	24.2	31.2	8
SYD185-0400Q20	72VDC	4.00	2000	19.0	63.7	27.3	43.9	27	34	8
SYD185-0550Q30	72VDC	5.50	3000	17.5	89.3	27.3	43.9	27	34	8
SYD185-0700Q30	72VDC	7.00	3000	22.3	116	35.5	52.0	30	37	8
SYD185-0700Q20	72VDC	7.00	2000	33.4	116	51.8	68.3	35	42	8

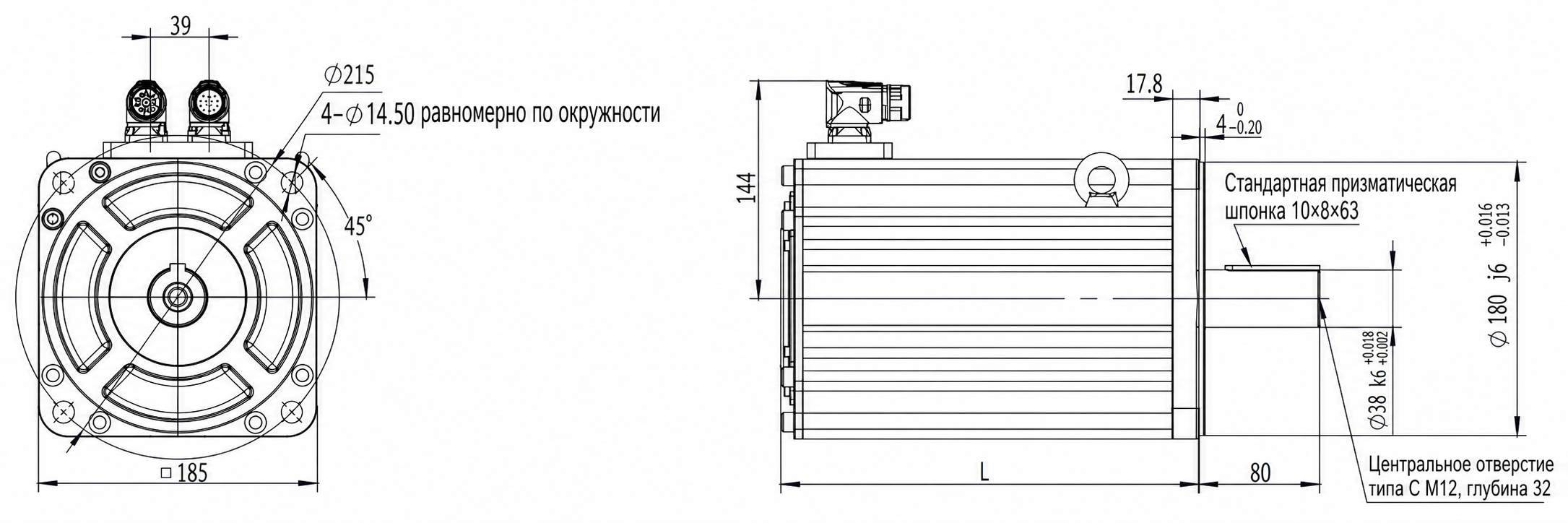

SYD High & Low Temperature Servo Motor 185 Series Dimension Drawing

Model	Motor Length L (Without Brake)	Motor Length L (With Brake)
SYD185-0390H30	176.3	261.6
SYD185-0470H15	226.3	311.6
SYD185-0600H20	226.3	311.6
SYD182-0750H30	226.3	311.6
SYD185-0670H15	276.3	361.6
SYD185-0750H20	276.3	361.6
SYD185-0930H30	276.3	361.6
SYD185-0880H15	326.3	411.6
SYD185-1000H20	326.3	411.6
SYD185-1070H30	326.3	411.6
