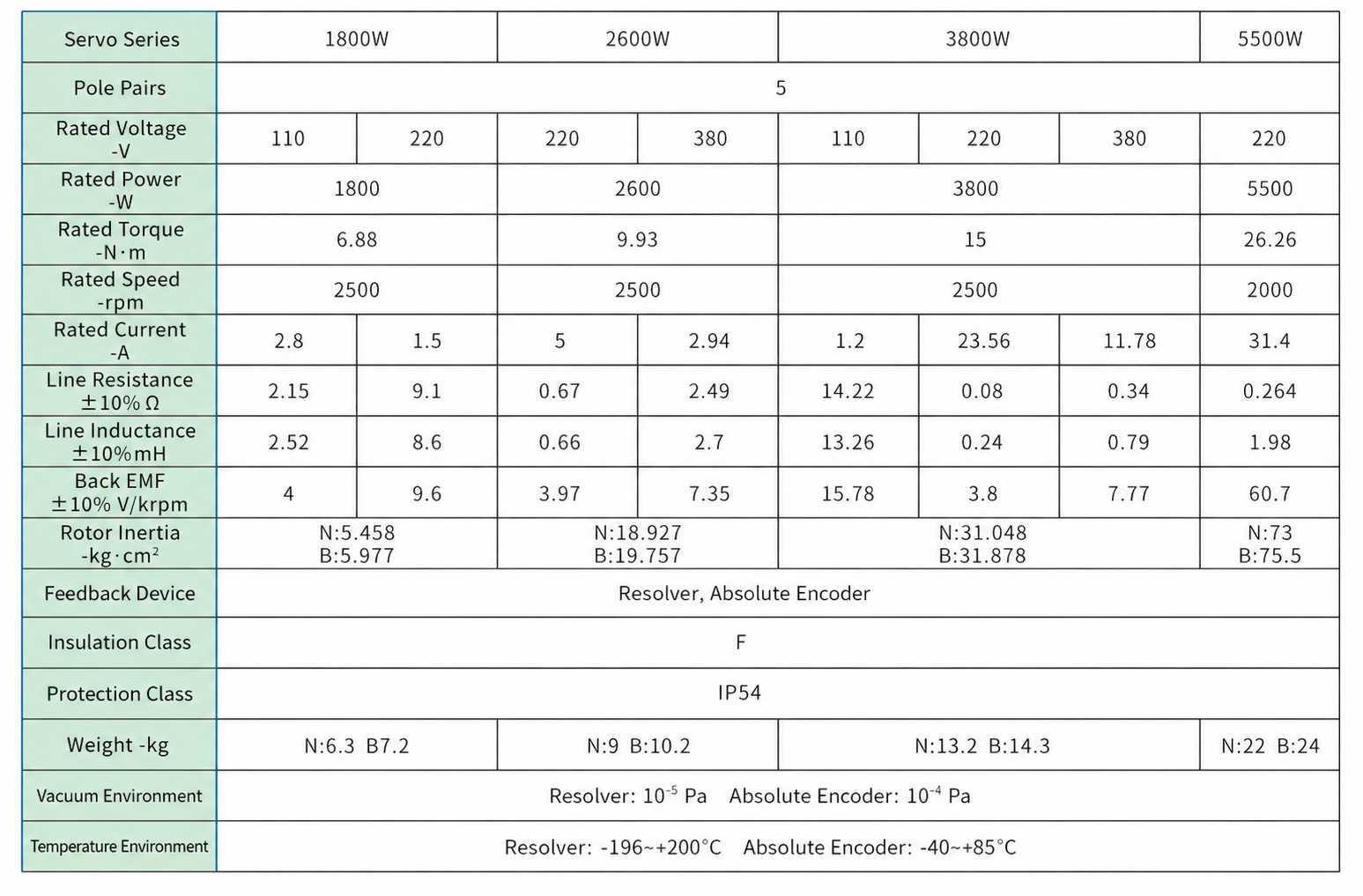

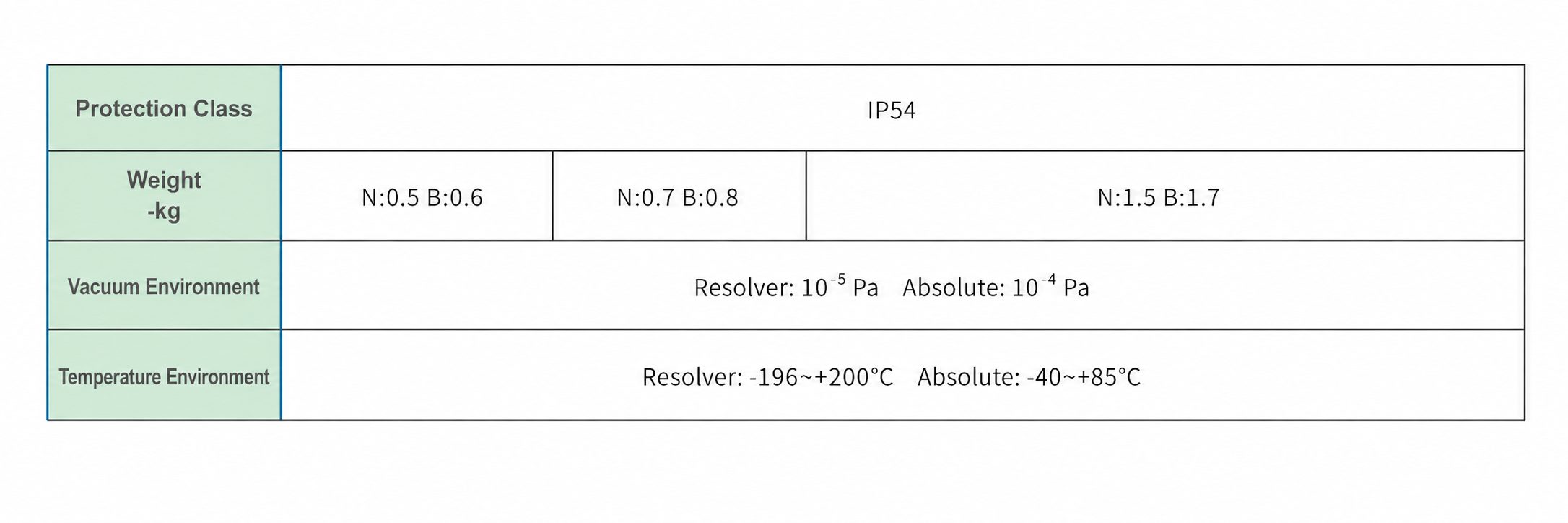

SYDH high and low temperature vacuum servo motor

The operating temperature ranges from a minimum of -196°C to a maximum of +200°C, with a vacuum level better than 1 × 10⁻⁵ Pa, and a power range from 50 W to 5.5 kW.

It is also suitable for high-cleanliness environments. Through special material selection and a comprehensive post-processing process, the motor performs reliably even in ultra-clean operating conditions.

According to customer requirements, SENYD cooperates with third-party manufacturers to jointly develop gearboxes of corresponding ratings, which can be customized and optimized. In addition, motors can be further customized in terms of specifications, radiation resistance, mold resistance, impact resistance, shaft configurations, and other special requirements.

Application environment: vacuum, high temperature, low temperature

Vacuum level: 1 × 10⁻⁵ Pa

Temperature range: -196°C to +200°C

Radiation resistance: 10⁵ Gy
