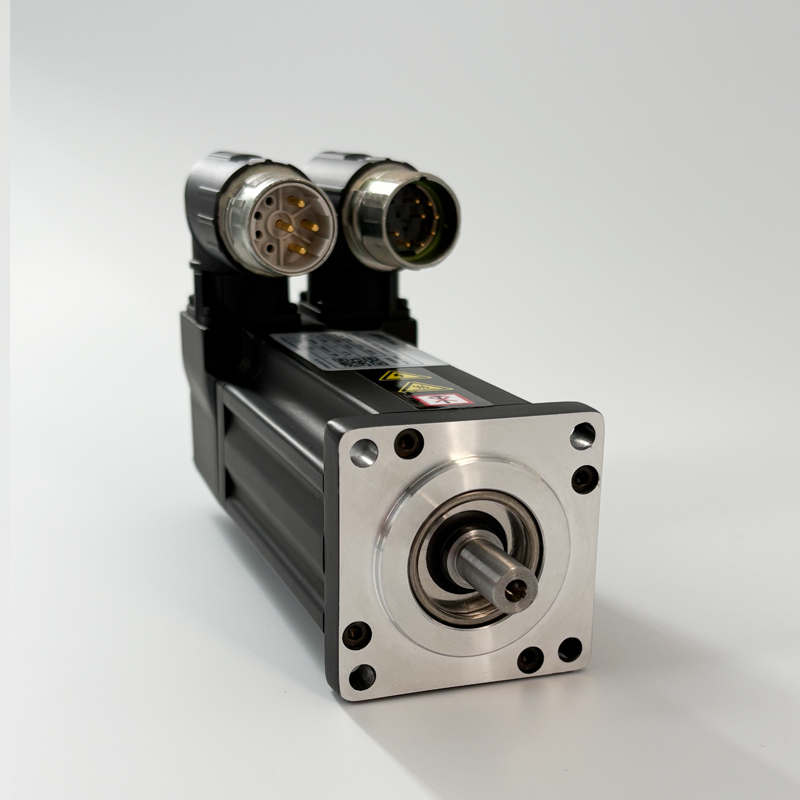

SYD Series 98 High and Low Temperature Servo Motor

The SENYD SYD Series High and Low Temperature Servo Motor is a high-performance, customizable servo motor designed for operation in harsh high and low temperature environments. Its internal permanent magnets are made of high-performance neodymium iron boron (NdFeB) material. The combination of advanced magnetic materials and a specially designed rotor–stator assembly is the key to achieving high torque and high power density.

It is widely used in humid, desert, hot, cold, icy, freezing, or any extreme environmental conditions.

• Operating temperature range: -40°C to 80°C
• Rated power: 100W–17kW
• Rated speed: 3000 rpm
• Built-in feedback: resolver or absolute encoder
• Customization options: various coil designs available, supporting voltage levels from 28VDC to 380VAC.
