SYD Series 70 High and Low Temperature Servo Motor

The SENYD SYD series high & low temperature servo motor is a high-performance, customizable servo motor designed for harsh high and low temperature environments. The internal permanent magnets are made of high-performance neodymium iron boron (NdFeB) material. The magnet material and special rotor–stator assembly design are key to achieving high torque and high power density. It is widely used in humid, desert, hot, cold, icy, frozen, or any extreme temperature environments.

Operating temperature: -40°C to 80°C
Rated power: 100W–17kW
Rated speed: 3000 rpm
Built-in feedback: resolver or absolute encoder
Customization: different winding options available, supporting 28VDC to 380VAC and other voltage levels.

SYD 70 Series High and Low Temperature Servo Motor

Model	Rated Voltage UN (V)	Rated Power PN (kW)	Rated Speed Nn (r/min)	Rated Torque MN (N·m)	Rated Current IN (A)	Inertia J (10⁻⁴ kg·m²)	Inertia Jp (10⁻⁴ kg·m²)	Масса (с тормозом) Mₚ (кг)	Weight Mp (kg)	Number of Poles
SYD070-0031L30	220VAC	0.31	3000	1.0	1.71	0.13	0.31	1.5	2.1	8
SYD070-0047L30	220VAC	0.47	3000	1.5	2.46	0.20	0.38	1.8	2.4	8
SYD070-0057L30	220VAC	0.57	3000	1.82	2.97	0.25	0.43	1.5	2.1	8
SYD070-0073L30	220VAC	0.73	3000	2.33	3.42	0.33	0.51	2.4	3.0	8
SYD070-0096L30	220VAC	0.96	3000	3.07	4.14	0.45	0.63	2.9	3.5	8
SYD070-0047H30	380VAC	0.47	3000	1.50	1.27	0.20	0.38	1.8	2.4	8
SYD070-0057H30	380VAC	0.57	3000	1.82	1.51	0.25	0.43	2.0	2.6	8
SYD070-0073H30	380VAC	0.73	3000	2.33	1.74	0.33	0.51	2.4	3.0	8
SYD070-0096H30	380VAC	0.96	3000	3.07	2.38	0.45	0.63	2.9	3.5	8
SYD070-0009T10	24VDC	0.09	1000	0.87	7.1	0.13	0.31	1.5	2.1	8
SYD070-0022T30	24VDC	0.22	3000	0.70	12.7	0.13	0.31	1.5	2.1	8
SYD070-0044T30	24VDC	0.44	3000	1.40	23.1	0.25	0.43	2.0	2.6	8
SYD070-0024S30	48VDC	0.24	3000	0.77	7.3	0.13	0.31	1.5	2.1	8
SYD070-0044S30	48VDC	0.44	3000	1.40	12.3	0.25	0.43	2.0	2.6	8
SYD070-0064S30	48VDC	0.64	3000	2.03	19.2	0.33	0.51	2.4	3.0	8
SYD070-0024Q30	72VDC	0.24	3000	0.77	4.5	0.13	0.31	1.5	2.1	8
SYD070-0044Q30	72VDC	0.44	3000	1.40	8.4	0.25	0.43	2.0	2.6	8

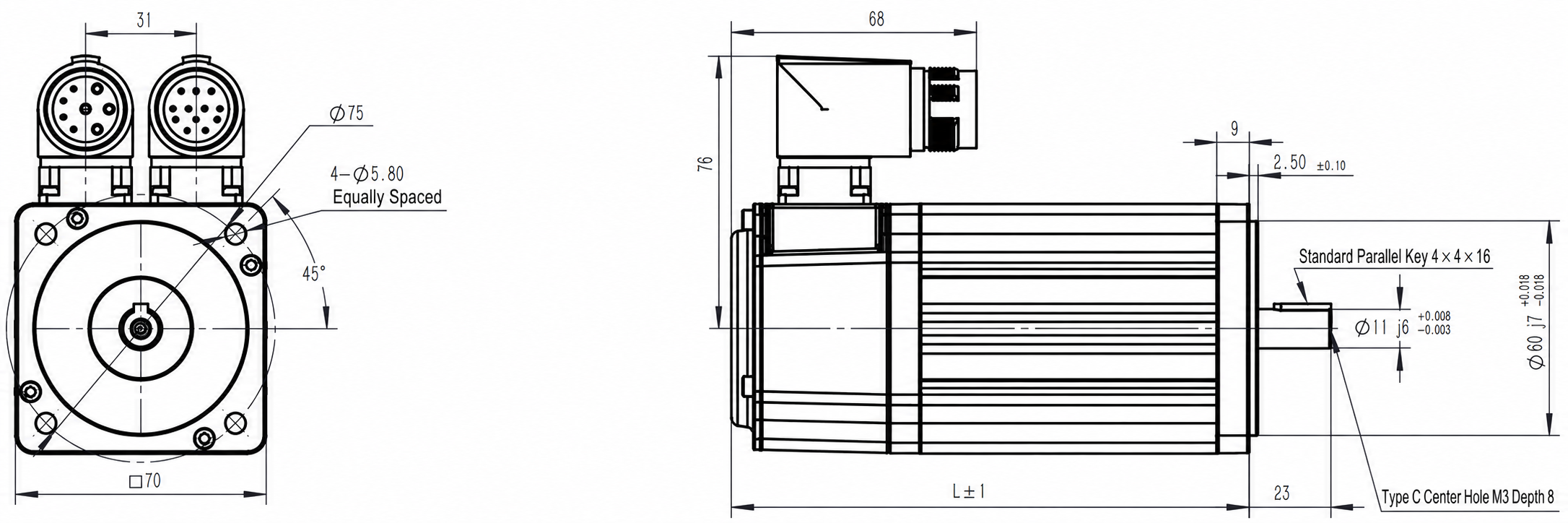

SYD High & Low Temperature Servo Motor 70 Series Dimension Drawing

Model	Motor Length L (Without Brake)	Motor Length L (With Brake)
SYD070-0031L30	119.4	153.3
SYD070-0047L30	134.4	168.3
SYD070-0057L30	144.4	178.3
SYD070-0073L30	161.4	195.3
SYD070-0047H30	134.4	168.3
SYD070-0057H30	144.4	178.3
SYD070-0073H30	161.4	195.3
SYD070-0009T10	119.4	153.3
SYD070-0022T30	119.4	153.3
SYD070-0044T30	144.4	178.3
SYD070-0024S30	119.4	153.3
SYD070-0044S30	144.4	178.3
SYD070-0064S30	161.4	195.3
SYD070-0024Q30	119.4	153.3
SYD070-0044Q30	144.4	178.3
