SYD Series 60 High and Low Temperature Servo Motor

The SENYD SYD Series High and Low Temperature Servo Motor is a high-performance, customizable servo motor designed for operation in harsh high and low temperature environments. Its internal permanent magnets are made of high-performance neodymium iron boron (NdFeB) material. The combination of advanced magnetic materials and a specially designed rotor–stator assembly is the key to achieving high torque and high power density.

It is widely used in humid, desert, hot, cold, icy, freezing, or any extreme environmental conditions.

Operating temperature range: -40°C to 80°C
Rated power: 100W–17kW
Rated speed: 3000 rpm
Built-in feedback: resolver or absolute encoder
Customization options: various coil designs available, supporting voltage levels from 28VDC to 380VAC.

SYD 60 Series High and Low Temperature Servo Motor

Model	Rated Voltage UN (V)	Rated Power PN (kW)	Rated Speed Nn (r/min)	Rated Torque MN (N·m)	Rated Current IN (A)	Inertia J (10⁻⁴ kg·m²)	Inertia Jp (10⁻⁴ kg·m²)	Weight M (kg)	Weight Mp (kg)	Number of Poles
SYD060-0010T30	24VDC	0.10	3000	0.32	5.7	0.11	0.16	1.0	1.4	8
SYD060-0020T30	24VDC	0.20	3000	0.64	11.4	0.18	0.23	1.4	1.7	8
SYD060-0010S30	48VDC	0.10	3000	0.32	2.8	0.11	0.16	1.0	1.4	8
SYD060-0020S30	48VDC	0.20	3000	0.64	5.7	0.18	0.23	1.4	1.7	8
SYD060-0040S30	48VDC	0.40	3000	1.28	11.9	0.26	0.31	1.7	2.0	8
SYD060-0010Q30	72VDC	0.10	3000	0.32	1.9	0.09	0.14	1.0	1.4	8
SYD060-0020Q30	72VDC	0.20	3000	0.64	4.2	0.17	0.22	1.4	1.7	8

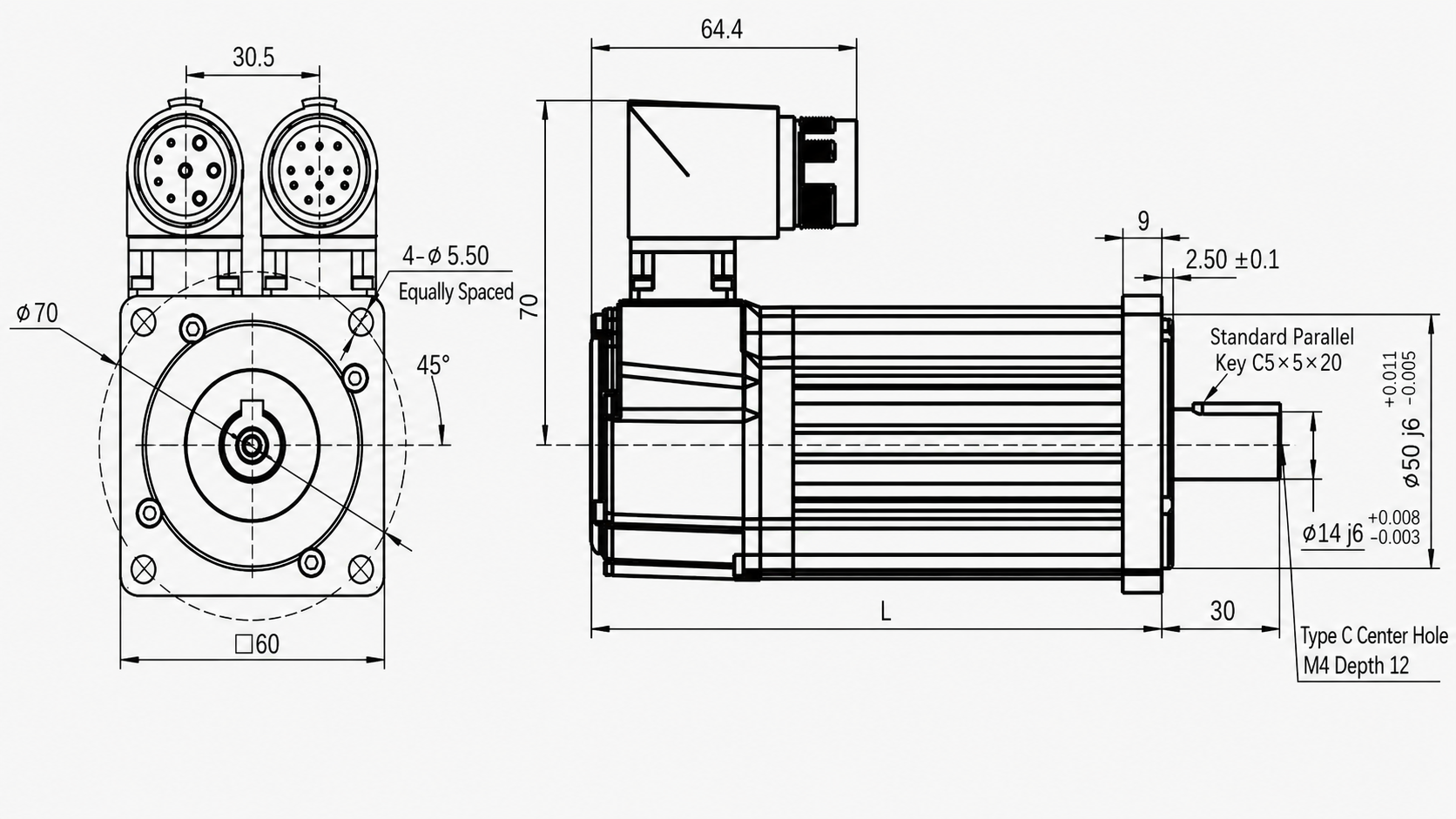

SYD High & Low Temperature Servo Motor 60 Series Dimension Drawing

Model	Motor Length L (Without Brake)	Motor Length L (With Brake)
SYD060-0010T30	118	145
SYD060-0020T30	143	170
SYD060-0010S30	118	145
SYD060-0020S30	143	170
SYD060-0040S30	168	195
SYD060-0010Q30	118	145
SYD060-0020Q30	143	170
