SYDL Series 130 High and Low Temperature Servo Motor

SYD High and Low Temperature Servo Motor 130 Flange Parameters

Model	Rated Voltage UN (V)	Rated Power PN (kW)	Rated Speed Nn (r/min)	Rated Torque MN (N·m)	Rated Current IN (A)	Inertia J (10⁻⁴ kg·m²)	Inertia Jp (10⁻⁴ kg·m²)	Weight M (kg)	Weight Mp (kg)	Number of Poles
SYDL130-0100H20	380VAC	1.00	2000	4.78	2.7	13.1	15.9	6.90	9.1	10
SYDL130-0100L20	220VAC	1.00	2000	4.78	4.6	13.1	15.9	6.90	9.1	10
SYDL130-0100Q20	72VDC	1.00	2000	4.78	18.5	13.1	15.9	7.2	9.3	10
SYDL130-0100S20	48VDC	1.00	2000	4.78	26.8	13.1	15.9	7.2	9.3	10
SYDL130-0100T20	24VDC	1.00	2000	4.78	54.5	13.1	15.9	7.2	9.3	10
SYDL130-0150H20	380VAC	1.50	2000	7.16	4.2	20.5	23.3	8.8	10.9	10
SYDL130-0150L20	220VAC	1.50	2000	7.16	7.2	20.5	23.3	8.8	10.9	10
SYDL130-0150Q20	72VDC	1.50	2000	7.16	28.1	20.5	23.3	9.0	11.1	10
SYDL130-0150S20	48VDC	1.50	2000	7.16	42.8	20.5	23.3	9.0	11.1	10
SYDL130-0150T20	24VDC	1.50	2000	7.16	85.2	20.5	23.3	9.0	11.1	10
SYDL130-0200H20	380VAC	2.00	2000	9.55	5.4	27.9	30.7	10.6	12.7	10
SYDL130-0200L20	220VAC	2.00	2000	9.55	9.6	27.9	30.7	10.6	12.7	10
SYDL130-0200Q20	72VDC	2.00	2000	9.55	37.3	27.9	30.7	10.8	12.9	10
SYDL130-0200S20	48VDC	2.00	2000	9.55	56.2	27.9	30.7	10.8	12.9	10
SYDL130-0200T20	24VDC	2.00	2000	9.55	102.0	27.9	30.7	10.8	12.9	10
SYDL130-0300H20	380VAC	3.00	2000	14.32	8.0	35.4	38.2	12.5	14.6	10
SYDL130-0300L20	220VAC	3.00	2000	14.32	14.3	35.4	38.2	12.5	14.6	10
SYDL130-0300Q20	72VDC	3.00	2000	14.32	54.3	42.9	45.7	14.5	16.6	10
SYDL130-0300S20	48VDC	3.00	2000	14.32	85.2	42.9	45.7	14.5	16.6	10
SYDL130-0380H20	380VAC	3.80	2000	18.2	10.1	42.9	45.7	14.3	16.4	10
SYDL130-0380L20	220VAC	3.80	2000	18.2	18.1	42.9	45.7	14.3	16.4	10
SYDL130-0380Q20	72VDC	3.80	2000	18.2	70.0	50.3	53.1	16.3	18.4	10
SYDL130-0380S20	48VDC	3.80	2000	18.2	98.5	50.3	53.1	16.3	18.4	10
SYDL130-0500H20	380VAC	5.00	2000	23.9	13.6	50.3	/	16.1	/	10
SYDL130-0500L20	220VAC	5.00	2000	23.9	24.0	50.3	/	16.1	/	10
SYDL030-0150H30	380VAC	1.50	3000	4.78	3.20	13.1	15.9	6.9	9.1	10
SYDL030-0150L30	220VAC	1.50	3000	4.78	5.6	13.1	15.9	6.9	9.1	10
SYDL030-0150Q30	72VDC	1.50	3000	4.78	26.6	13.1	15.9	7.2	9.3	10
SYDL030-0150S30	48VDC	1.50	3000	4.78	40.0	13.1	15.9	7.2	9.3	10
SYDL030-0150T30	24VDC	1.50	3000	4.78	80.0	13.1	15.9	7.2	9.3	10
SYDL030-0250H30	380VAC	2.50	3000	7.96	5.10	20.5	23.3	8.8	10.9	10
SYDL030-0250L30	220VAC	2.50	3000	7.96	9.30	20.5	23.3	8.8	10.9	10
SYDL030-0250Q30	72VDC	2.50	3000	7.96	44.3	30.7	27.9	10.8	12.9	10
SYDL030-0250S30	48VDC	2.50	3000	7.96	66.5	30.7	27.9	10.8	12.9	10
SYDL030-0300H30	380VAC	3.00	3000	9.55	6.2	27.9	30.7	10.6	12.7	10
SYDL030-0300L30	220VAC	3.00	3000	9.55	11.2	27.9	30.7	10.6	12.7	10
SYDL030-0300Q30	72VDC	3.00	3000	9.55	54.2	27.9	30.7	10.8	12.9	10
SYDL030-0300S30	48VDC	3.00	3000	9.55	80.5	27.9	30.7	10.8	12.9	10
SYDL030-0400H30	380VAC	4.00	3000	12.73	8.1	35.4	38.2	12.5	14.6	10
SYDL030-0400L30	220VAC	4.00	3000	12.73	14.8	35.4	38.2	12.5	14.6	10
SYDL030-0400Q30	72VDC	4.00	3000	12.73	72.2	35.4	38.2	12.7	14.8	10
SYDL030-0400S30	48VDC	4.00	3000	12.73	100.5	35.4	38.2	12.7	14.8	10
SYDL030-0500H30	380VAC	5.00	3000	15.90	10.1	45.7	42.9	14.3	16.4	10
SYDL030-0500L30	220VAC	5.00	3000	15.90	18.0	45.7	42.9	14.3	16.4	10
SYDL030-0700H30	380VAC	7.00	3000	22.3	14.2	50.3	/	16.1	/	10
SYDL030-0700L30	220VAC	7.00	3000	22.3	24.8	50.3	/	16.1	/	10

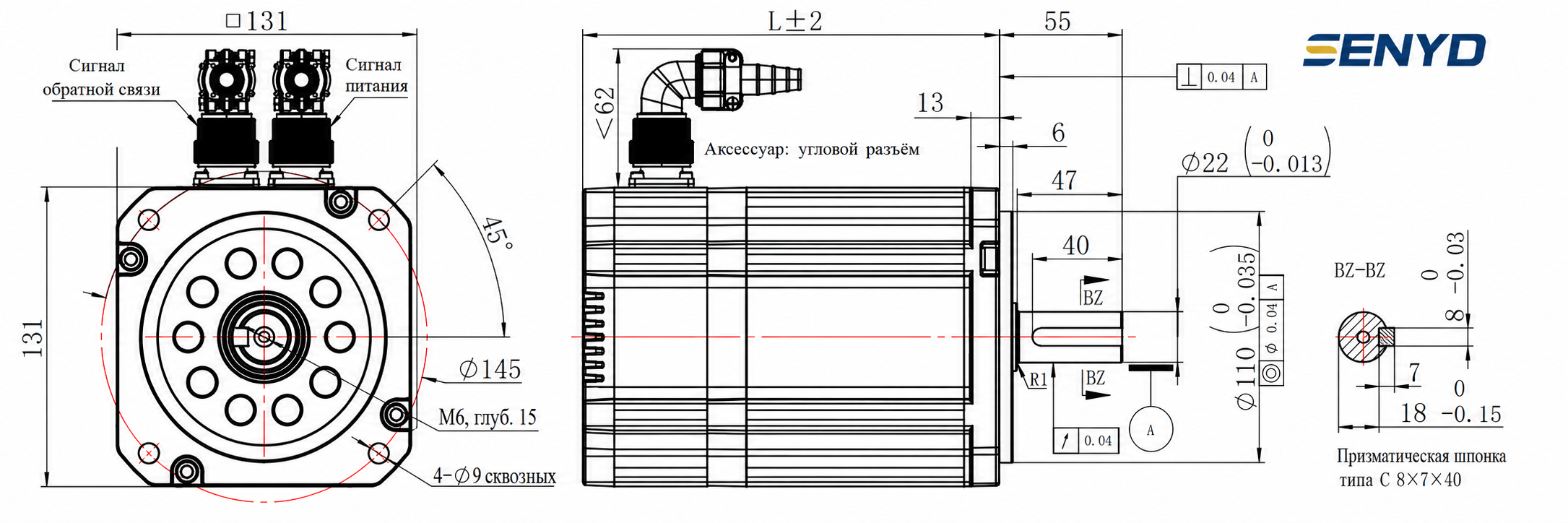

SYD High and Low Temperature Servo Motor 130 Flange Dimension Drawing

Model	Motor Length L (Without Brake)	Motor Length L (With Brake)
SYDL130-0100X20	148	188
SYDL130-0150X20	168	208
SYDL130-0200X20	188	228
SYDL130-0300X20	228	268
SYDL130-0380X20	248	288
SYDL130-0500X20	248	/
SYDL130-0150X30	148	188
SYDL130-0250X30	168	208
SYDL130-0300X30	188	228
SYDL130-0400X30	208	248
SYDL130-0500X30	228	268
SYDL130-0700X30	248	/
