SYDL Series 60 High and Low Temperature Servo Motor

The SYDL Series Servo Motor is a high-performance product that can be customized for operation in harsh high and low temperature environments. Its internal permanent magnets are made of high-performance neodymium iron boron (NdFeB) material. Combined with a specially designed rotor–stator assembly, this is the key to achieving high torque and high power density.

An optimized internal structure enables the motor to deliver excellent performance under severe conditions, featuring low inertia and high dynamic response, making it an outstanding solution for point-to-point positioning applications.

Temperature range: -40°C to +60°C

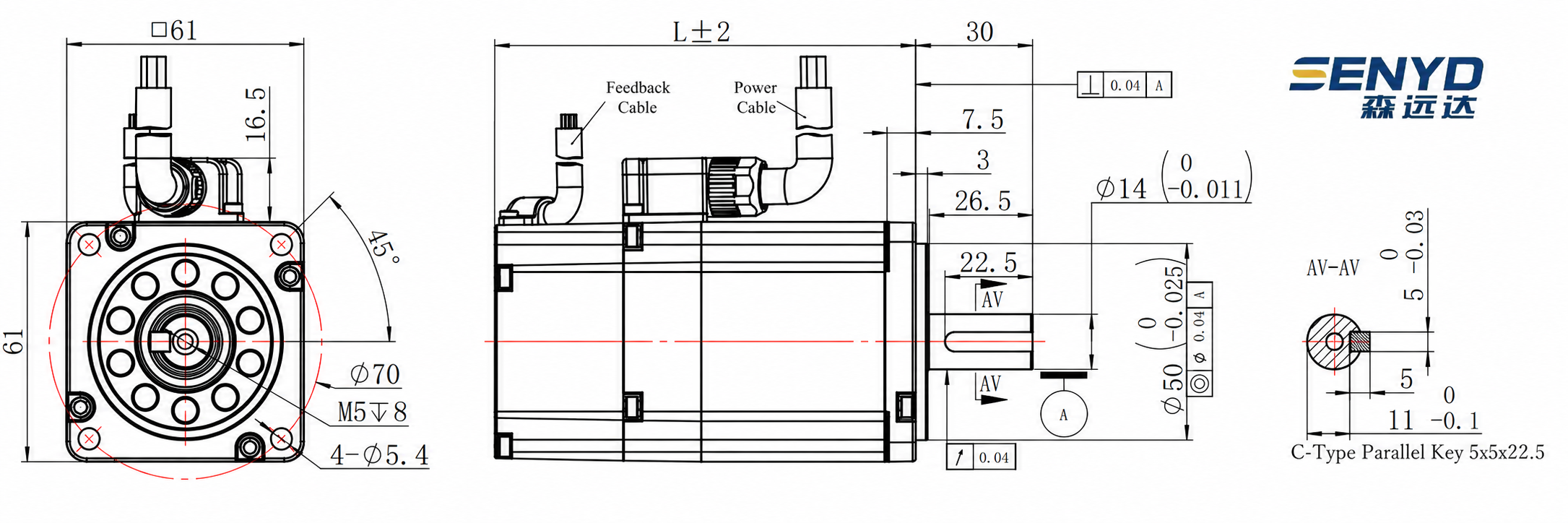

Standard flange options: 40, 60, 90, 110, 130, 180
Wide voltage range: DC24V, DC48V, DC72V, AC220V, AC380V
Multiple encoder options: 17-bit absolute encoder, 23-bit absolute encoder, rotary encoder, incremental encoder, etc.
